iOPTICS-GSO for identifying protein complexes from dynamic PPI networks

BMC Medical GenomicsBMC series – open, inclusive and trusted201710 (Suppl 5) :80

https://doi.org/10.1186/s12920-017-0314-x

  • Published:

Abstract

Background

Identifying protein complexes plays an important role for understanding cellular organization and functional mechanisms. As plenty of evidences have indicated that dense sub-networks in dynamic protein-protein interaction network (DPIN) usually correspond to protein complexes, identifying protein complexes is formulated as density-based clustering.

Methods

In this paper, a new approach named iOPTICS-GSO is developed, which is the improved Ordering Points to Identify the Clustering Structure (OPTICS) algorithm with Glowworm swarm optimization algorithm (GSO) to optimize the parameters in OPTICS when finding dense sub-networks. In our iOPTICS-GSO, the concept of core node is redefined and the Euclidean distance in OPTICS is replaced with the improved similarity between the nodes in the PPI network according to their interaction strength, and dense sub-networks are considered as protein complexes.

Results

The experiment results have shown that our iOPTICS-GSO outperforms of algorithms such as DBSCAN, CFinder, MCODE, CMC, COACH, ClusterOne MCL and OPTICS_PSO in terms of f-measure and p-value on four DPINs, which are from the DIP, Krogan, MIPS and Gavin datasets. In addition, our predicted protein complexes have a small p-value and thus are highly likely to be true protein complexes.

Conclusion

The proposed iOPTICS-GSO gains optimal clustering results by adopting GSO algorithm to optimize the parameters in OPTICS, and the result on four datasets shows superior performance. What’s more, the results provided clues for biologists to verify and find new protein complexes.

Keywords

  • Ordering points to identify the clustering structure algorithm (OPTICS)
  • Glowworm swarm optimization algorithm (GSO)
  • Protein complex
  • Density-based clustering

Background

Proteins are the indispensable components in various types of cells and tissues, and the executors of the biological functions. At the same time, each protein in the cell does not exist in isolation, and the occurrence of every life process must involve more than one protein [1]. Protein complexes are not only the basis of normal biological processes, also play important role in the pathological processes [2]. Therefore, identifying protein complexes play an important role in understanding the cellular organizations and functional mechanisms [3]. As a variety of protein interaction database have produced, it is possible to identify protein complexes from protein-protein interaction (PPI) networks. Living organisms are always changing, so are PPIs in living cells [4]. In addition, the interactions between proteins are changing over time not only with the presence and degradation of protein, but also with the environment. In [5], the authors incorporated the “time” factor for proteins in the form of cell-cycle phases into the analysis of complexes and studied the dynamic phenomena of complexes assembly and disassembly across various cell cycles. To express the dynamics, many dynamic data, including gene expression profiles [6], have been used to construct dynamic PPI networks (DPINs).

The discovery of protein complexes is equivalent to find subsets of function-related proteins from a data set. Clustering is an effective method, which can find subsets that have some common attributes from the database [7]. Therefore, the development of improved clustering algorithms has received a lot of attention in the last few years. The clustering algorithm based on density is an important type of clustering analysis method and one of its main advantages is able to detect any shape of cluster while being not sensitive to noise [8]. The Density-Based Spatial Clustering of Applications with Noise (DBSCAN) [9], which was proposed by Ester et al., is a clustering algorithm based on density. The DBSCAN algorithm is applicable to any shape and size of the dataset. It is noise-tolerant and independent of ordering of data objects. However, it has two initial parameters, the field radius and the minimum point within the field radius. The DBSCAN algorithm requires the user to manually input these two parameters while the clustering results are very sensitive to the values of two parameters. The DBSCAN algorithm also needs initialization parameters. In order to overcome those shortcomings of DBSCAN algorithm, Ankerst et al. [10] proposed a new algorithm called Ordering Points to Identify the Clustering Structure (OPTICS). Its basic idea is similar to DBSCAN when identifying clusters, and both searching for high density regions.

In real life, many optimization problems require not only to calculate the extremum, but also obtain their optimal values. This kind of problem is a serious challenge to the traditional algorithm. In this case, a growing number of swarm intelligence algorithms are successively put forward, such as Genetic Algorithm (GA) [11], Particle Swarm Optimization (PSO) [12]. Glowworm swarm optimization algorithm (GSO) [13], proposed by Krishnan and Ghose in 2005, is a bionic swarm intelligence algorithm. GSO simulates the glowworm group in motion guided by fluorescence to attract other glowworms or foraging around, the greater the value of fluorescein, the bright the glowworm is, and the more attractive it is.

OPTICS algorithm does not produce cluster for a data set explicitly; but instead creates an augmented ordering queue representing its density-based clustering structure. Then we need to deal with cluster-ordering and get clustering results. For each network clustering, different parameters settings produce different results. In this study, we put forward the algorithm named iOPTICS-GSO which is the improved OPTICS algorithm by using GSO to optimize the parameters in OPTICS. In order to investigate its performance, iOPTICS-GSO with other seven computing methods including DBSCAN [9], CFinder [14], MCODE [15], CMC [16], COACH [17], ClusterOne [18], MCL [19] and OPTICS_PSO [20]. At the same time, we also use the p-value for function enrichment analysis. The experiment results illustrated that iOPTICS-GSO achieved better performance compared with other competing algorithms.

The outline of this paper is as follows. In Section 2, after reviewing the GSO algorithm, basic OPTICS and our iOPTICS-GSO are presented. In Section 3, experimental results and analysis are described and discussed, and the conclusions are in Section 4.

Methods

GSO algorithm

In the GSO algorithm, glowworms with higher fluorescein are more attractive to other glowworms, and thus a group of glowworms move towards the glowworms with high fluorescein. Each glowworm in its dynamic decision domain radius chooses a glowworm whose fluorescein value is higher than its own fluorescein value to move towards and updates its dynamic decision-making domain. Then some glowworms are selected according to probability to update the position from dynamic decision-making domain. Finally, the decision domain updated. GSO algorithm has two important phases as follows.

The phase for updating the fluorescein.

The fluorescein value of each glowworm is related to the value of previous generation of fluorescein and the current fitness function. Let xi (t) represent the location of the i-th glowworm in the t-th generation, J(xi(t)) represent the fitness function of the i-th glowworm in the t-th generation. The fluorescein value l i(t) of the i-th glowworm in the t-th generation is calculated as follows:
$$ {l}_i(t)=\left(1-\rho \right)\left({l}_i\left(t-1\right)\right)+\gamma J\left({x}_i(t)\right) $$
(1)
where ρ and γ are two parameters with the values between 0 and 1.

The phase of updating the position.

Each new position of the glowworms is a small movement from the original position, which is calculated as follows:
$$ {x}_i\left(t+1\right)={x}_i(t)+s\times \left(\frac{x_j(t)-{x}_i(t)}{\left\Vert {x}_j(t)-{x}_i(t)\right\Vert}\right) $$
(2)
$$ s=\left(\frac{t_{\mathrm{max}}-t}{t_{\mathrm{max}}}\right)\times {s}_0 $$
(3)
where S is the update step length of the glowworms, S0 is the initial step length, and tmax is the largest number of iterations. Here, we adopt the method of linear regressive instead of fixed step length [21], in order to improve optimization ability of the algorithm when updating the population.

In the GSO, each glowworm is looking for the neighborhood within its field of vision, and then moves to a brighter glowworm. Each time the moving direction depends on the neighborhood selection. In addition, the glowworm decision domain radius size is influenced by the number of glowworms in different neighborhoods, when the number of glowworms is too small, glowworms will increase their decisions radius in order to find more glowworms; On the contrary, they will reduce their own decision-making radius. At the end, the GSO makes most of the glowworms gathered in a better position.

Optics

The key idea of density-based clustering such as OPTICS is that for each object in a cluster the neighborhood within a given radius has to contain at least a minimum number of objects (MinPts), which is the cardinality of the neighborhood. The condition Card(N ε (q)) ≥ MinPts is called the “core object condition”. If this condition holds for an object p, then we call p a “core object”. Only from core objects, can other objects be directly density-reachable.

In PPI networks, the node degrees obey power-law distribution, we select all nodes as core nodes so that the node which degree is small can be considered. As a result, we redefined two definitions as follows.

Definition 1: (Distance core of node p).

Let p be a protein in a PPI network, Distance MinPts (p) be the MinPts-th maximum distance from node p to all the other nodes. Then, the core-distance of p is defined as follows:
$$ {\mathrm{Distance}}_{\mathrm{core}}\left(\mathrm{p}\right)={\mathrm{Distance}}_{\mathrm{MinPts}}\left(\mathrm{p}\right) $$
(4)

Definition 2: (Distancereachability of node p).

Let nodes p and o be two proteins in a PPI network, let N(o) be the set which contains neighbors of node o. Then, the Distancereachability is defined as follows:
$$ {\mathrm{Distance}}_{\mathrm{reachibility}}\left(\mathrm{p},\mathrm{o}\right)=\kern0.48em \max \left({\mathrm{Distance}}_{\mathrm{core}}\left(\mathrm{o}\right),{\mathrm{d}}_{\mathrm{op}}\right) $$
(5)
where dop is the distance from node p to node o. As can be seen above, the reachability distance of a node cannot be smaller than the core distance of node o. Thus OPTICS creates an ordering queue of all nodes, and stores the core distance as well as a suitable reachability distance for each node.

The proposed iOPTICS-GSO

In this section, we elaborate the proposed iOPTICS-GSO how to identify protein complexes. The following four subsections describe the calculation of distance between proteins, clustering PPI networks, iOPTICS-GSO algorithm and its time complexity analysis, respectively.
  1. 1.

    Calculating the distance in a PPI network


In a PPI network, we use the similarity between two proteins to measure their distance. As we know, the fewer the number of same neighbors between two proteins is, the less the similarity of two proteins is, and the smaller the probability that they belong to the same protein complex is. On the contrary, the higher the similarity of the two proteins is, the more likely they belong to the same protein complex [22]. Therefore, the similarity is determined according to the number of same neighbors the two nodes share in the PPI network. Consider a PPI network PN, A is adjacency matrix of PN, and the binary vector X i  = (A i1 , A i2 , …, A in ) indicates the interactions between protein i and other proteins, then we calculate the number of common neighbor(CN) between proteins i and j by the equation: CN ij  = |N i N j |. Here N i and N j expresses the neighbor that proteins i and j have, respectively. Therefore, if CNij ≠ 0, the similarity between proteins i and j is calculated as follows [23]:
$$ {sim}_{ij}=\frac{\sum_{\mathrm{k}=1}^{\mathrm{n}}\min \left({\mathrm{CN}}_{\mathrm{ik}},{\mathrm{CN}}_{\mathrm{jk}}\right)}{\sum_{\mathrm{k}=1}^{\mathrm{n}}\max \left({\mathrm{CN}}_{\mathrm{ik}},{\mathrm{CN}}_{\mathrm{jk}}\right)} $$
(6)
Considering in the PPI network, the two nodes which have no common neighbor also have connection, and there have multiple protein complexes which only contains two proteins in standard complexes. we redefined the similarity S as follows:
$$ {S}_{ij}=\left\{{}_{{}_{\frac{\mathrm{Aij}}{\max \left(\left|{N}_i\right|,\kern1em \left|{N}_j\right|\right)},}\kern4.199999em {\mathrm{CN}}_{\mathrm{ij}=0.}}^{{\mathrm{sim}}_{\mathrm{ij}},\kern7.859997em {\mathrm{CN}}_{\mathrm{ij}}\ne 0;}\kern1.08em \right. $$
(7)
The greater the similarity between two proteins, the smaller the distance between them is. Then the distance can be calculated as follows:
$$ {\mathrm{D}}_{\mathrm{ij}}=1-{\mathrm{S}}_{\mathrm{ij}} $$
(8)
We use the D ij to replace the Euclidean distance in OPTICS for measuring the distance between two proteins in a PPI network.
  1. 2.

    Clustering PPI network.


Fig. 1 shows a PPI network with distances between node o and other nodes. In this study, we set the MinPts to be 4, and then from Fig. 1, we select firstly the core to be node o. For obtaining the core distance of o, we calculate all distances between core o and its neighbors according to Eq. (8). From the definition, we get the value Distancereachability (d, o) = 0.64. In the same manner, we obtain a sequence of values of all nodes.
Fig. 1
Fig. 1

An example of the two distances

We can now improve the algorithm to preserve the track of all the reachability distance values and use them to save the expensive operations identified above. We can obtain an augmented ordering queue from OPTICS, and convert the ordering queue into a reachability-plot. Fig. 2 shows such a reachability-plot and an example of cluster. Each sunken part in Fig. 2a can be viewed as a cluster. That is, the new cluster starts from a steep down region and end up with next steep down region. As a result, form the reachability-plot, the algorithm can find all clusters.
Fig. 2
Fig. 2

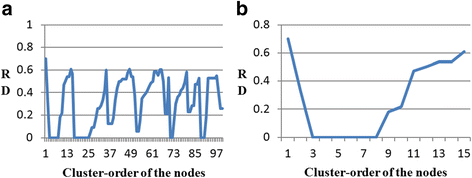

Illustration of the cluster-ordering (a) Reachability-plots for a part of DIP data by OPTICS (b) One cluster in Reachability-plots

For example, in Fig. 2b we can see a cluster starting at object #1 and ending at object #15. Note that object #1, which is the last object with a high reachability value, is part of the cluster, its high reachability indicates that it is far away from the previous cluster. It has to be close to object #2. However, because object #3 has a low reachability value, indicating that it is close to one of the objects #1 or #2. Because the next object that OPTICS chooses is in the cluster-ordering, it has to be close to #2 (if it were close to object #l it would have been assigned index 1 and not index 2). A similar argument holds for object #15, which is the last object with a low reachability value, and therefore is also a member of the cluster.
  1. 3.

    iOPTICS-GSO Algorithm.


Although the OPTICS algorithm can find all clusters, the dynamic PPI network has more than one sub-network, and the size and topological structure of these sub-networks are quite different. For example, when we apply OPTICS to dynamic PPI network with 12 sub-networks, 12 reachability-plots are obtained; and each reachability-plot is different from others. The optimal parameters and the corresponding performance of each sub-network are shown in Table 1. It is evident that each sub-network has its own optimal parameters and the performances of the clustering result are different. It also can be seen that the OPTICS with global density parameters is not suitable for datasets with different densities.
Table 1

The value of parameters which corresponding to the best result in each sub-network on DIP

Timestamps

1

2

3

4

5

6

7

8

9

10

11

12

ɛ

0.62

0.50

0.52

0.59

0.60

0.58

0.62

0.51

0.55

0.64

0.60

0.60

MinPts

3

3

3

3

3

3

3

3

3

3

3

3

precision

0.7500

0.7421

0.8182

0.9000

0.8462

0.8889

0.9048

0.7805

0.6064

0.7419

0.6970

0.9524

recall

0.5263

0.5122

0.3971

0.4500

0.4400

0.2587

0.3115

0.5565

0.5089

0.5897

0.5349

0.5882

f-measure

0.6185

0.6000

0.5347

0.6000

0.5789

0.4324

0.4634

0.6497

0.5534

0.6571

0.6053

0.7273

It is well known that the GSO algorithm has less parameters, simple operation and good stability, etc. GSO algorithm simulates the characteristic of glowworms glow in nature, by comparing the size of the fluorescein value to achieve the purpose of communication, so as to realize the optimization of the problem. So we introduce the GSO algorithm to optimize the parameters of OPTICS, in order to obtain optimal results. Algorithm2 describes the details of iOPTICS-GSO. After several circulations iterative process, a glowworm constantly updates its position and iteratively approaches to the best position. At last, the glowworm finds the best position.

The corresponding relationships between GSO and OPTICS are showed in Fig. 3. When we adopt the GSO algorithm to optimize the parameter ɛ in OPTICS, the position of glowworms in GSO also is related to the value of parameter ɛ. By updating its dynamic decision domain radius, a glowworm moving its position corresponds to searching for the optimal value of parameters ε. When fitness function achieves the maximum value in GSO after a number of positions are updated, OPTICS finds the best clustering result.
Fig. 3
Fig. 3

The corresponding relationships between GSO and OPTICS algorithms

In Algorithm: iOPTICS-GSO, firstly, the fluorescein values, the decision domain radius and the positions of glowworms are initialized. Secondly, GSO algorithm is used to optimize the parameter ɛ in OPTICS. In this part, one position of a glowworm is one parameter value. Then OPTICS is run by using this parameter value. For each value (position), a corresponding clustering result is obtained. Next the clustering performance is evaluated for each value (position). Next the fluorescein value is updated and the glowworms move accordingly. After iterations, the new positions of glowworms are found. The maximum fitnessvalue is selected as the optimal position.
  1. 4.

    Time complexity analysis of iOPTICS-GSO algorithm


The time complexity is used to estimate the efficiency of the iOPTICS-GSO algorithm. Let maxiter be the maximal iterations of external loop in iOPTICS-GSO algorithm, num be the number of proteins in sub-works and PopSize be the number of glowworms. The time complexity is analyzed below:
  • The time complexity of OPTICS algorithm is O (num 2).

  • The time complexity of computing the fitness of glowworms is O (PopSize * O (num 2).

  • The time complexity of glowworms moving process is O (PopSize 2).

  • The time complexity for updating the position O is (PopSize).

In summary, the time complexity of iOPTICS-GSO is O (maxiter * (num 2 + PopSize * num 2+ PopSize 2 + PopSize)). Finally, the time complexity of this algorithm is O (maxiter * PopSize * num 2).

Results and discussion

Experimental datasets

In this study, we used four static PPI networks for yeast, including DIP [24], Krogan [25], MIPS [26] and Gavin [27] to evaluate our proposed iOPTICS-GSO. The DIP data consists of 4995 proteins and 21,554 interactions, Krogan data consists of 2674 proteins and 7075 interactions, MIPS data consists of 4546 proteins and 12,319 interactions and Gavin data consists of 1430 proteins and 6531 interactions. For verifying protein complexes identified by our proposed method, the set of protein complexes derived from CYC2008 [28] is selected as the gold standard dataset in this study, which includes 408 protein complexes and covers 1492 proteins,

In study, we construct DPINs similar to Ref. [29] by integrating gene expression profiles. Gene expression data were available from GEO (Gene Expression Omnibus) [30] with access number GSE3431. The data contained 9336 genes at 36 time points in the 3 cell life cycles. DPINs are constructed from static PPI network and gene expression data, we use the three-sigma principle to judge whether a gene is expressed in a particular timestamp. For example, we preset a threshold value, if the value of a protein is greater than the threshold at a certain timestamp t, this protein is judged to be an active protein at t timestamp. Each sub-network is constituted by these active proteins and the interactions between them. Then these sub-networks together form the DPIN. As a result, we get four DPINs from DIP, Krogan, MIPS and Gavin, respectively. Table 2 shows different scales of different sub-networks from these four static PPI networks.
Table 2

The number of proteins and interactions in each sub-network of the four datasets contain

DIP data

Timestamps

1

2

3

4

5

6

7

8

9

10

11

12

 Proteins

797

941

796

623

610

530

493

944

1090

591

661

461

 Interactions

981

1444

1188

745

750

646

573

1705

2185

856

974

526

Krogan data

Timestamps

1

2

3

4

5

6

7

8

9

10

11

12

 Proteins

336

379

320

256

206

189

202

580

626

304

330

250

 Interactions

334

464

331

234

210

184

213

1025

1081

314

373

258

MIPS data

Timestamps

1

2

3

4

5

6

7

8

9

10

11

12

 Proteins

737

897

781

583

570

531

470

839

1,014

523

616

402

 Interactions

1097

1443

1183

754

684

642

504

1238

1637

878

1207

700

Gavin data

Timestamps

1

2

3

4

5

6

7

8

9

10

11

12

 Proteins

177

228

215

135

112

102

96

379

419

174

190

146

 Interactions

242

334

317

150

135

118

135

1019

1043

230

264

184

Performance evaluation

In order to evaluate the clustering results, we have adopted three kinds of commonly used statistical metrics: precision, recall and f-measure [31]. Precision and recall measure the accuracy of the protein complexes identified by algorithm matching the known protein complexes in the standard dataset and the accuracy of the known protein complexes matching the identified protein complexes, respectively. f-measure is used to evaluate the closeness between the known protein complexes and the identified protein complexes. Precision, recall and f-measure are calculated as follows:
$$ precision=\frac{\left|X\cap F\right|}{X} $$
(9)
$$ recall=\frac{\left|X\cap F\right|}{\left|F\right|} $$
(10)
$$ f- measure=\frac{2\times \left( precision\times recall\right)}{precision+ recall} $$
(11)
$$ OS\left( pc, kc\right)=\frac{{\left| pc\cap kc\right|}^2}{\left| pc\right|\times \left| kc\right|} $$
(12)
where X is the set of proteins in an identified protein complexes and F is the set of known complexes in the standard dataset. |pc| is the number of proteins in the identified protein complex and |kc| is number of proteins in the known protein complex. The overlapping score (OS) evaluates how many proteins in the true protein complexes can be recovered by the identified protein complexes [32, 33]. Usually we consider an identified protein complex matches the known protein complex when the OS is equal to or larger than 0.2 [5]. We also use the p-value to evaluate the statistical and biological significance of the identified protein complexes [34]. In detail, given k proteins in a true protein complex C with a biological function shared by an identified proteins complex F from a total set V of proteins, the p-value is defined as:
$$ P- value=1-\sum \limits_{i=0}^{k-1}\frac{\left(\begin{array}{c}\left|F\right|\\ {}i\end{array}\right)\left(\begin{array}{c}\left|V\right|-\left|F\right|\\ {}\left|C\right|-i\end{array}\right)}{\left(\begin{array}{c}\left|V\right|\\ {}\left|C\right|\end{array}\right)} $$
(13)
which is the probability that an identified protein complex is enriched by a true protein complex only by chance [35]. A low p-value of an identified protein complex means the collective occurrence of these proteins belongs to the same complex not by chance, yet with a high statistical significance. That is to say, the lower the p-value of a protein complex is, the stronger biological significance the protein complex possesses, while the protein complex with p-value greater than 0.01 is considered to be insignificant. In the experiments, p-value was calculated on biological process ontologies.

The effect of parameter

In iOPTICS-GSO algorithm, there is one parameter to be preset, which is the value of MinPts. According to the topological properties of PPI networks, if the value of MinPts is too large, there would be no meaningful cluster that can be identified by the algorithm. For example, when we set MinPts to 10, there is no meaningful cluster that can be identified from the DPIN network. On the contrary, if the value of MinPts is too small, it will be too many proteins in the same cluster and the number of identified protein complexes will be few. In this study, the value of MinPts is set according to Fig. 4 for the four datasets. The x-axis represents the values of parameter which range from 2 to 8, and the y-axis represents the values of f-measure. Each value of parameter corresponds to a value of f-measure,a set of values form the line chart, as shown in Fig. 4. The blue line represents the result on DIP data, the orange line represents the result on Krogan data, the green line represents the result on MIPS data, and the yellow line represents the result on Gavin data.
Fig. 4
Fig. 4

The effect of different values of MinPts on f-measure

In Fig. 4, the effect of different values of MinPts on f-measure is not very big, and this also confirms that the reachability-plot is rather insensitive to the input parameter of the method. We observe that the value of f-measure increases initially as the value of MinPts increases and decreases after reaching the maximum. Then we chose the value of MinPts at which the f-measure reaches the maximum in iOPTICS-GSO. As a result, we find that the optimal values of MinPts are 3, 2, 2 and 4 for DIP, Krogan, MIPS and Gavin, respectively.

Clustering comparisons

In order to directly validate its performance, the iOPTICS-GSO is compared with other seven competing algorithms, DBSCAN [9], CFinder [14], MCODE [15], CMC [16], COACH [17], ClusterOne [18] MCL [19] and OPTICS_PSO [20]. At the same time, the iOPTICS-GSO is also compared with the basic OPTICS. All comparisons are on the DIP, Krogan, MIPS and Gavin datasets. Each algorithm uses its best parameter when comparing, and it was found that these algorithms can get best results under the default parameter setting. The performances of all clustering algorithms are reported in Table 3 which contains the category of each algorithm, the number of identified protein complexes, and the average size of protein complexes.
Table 3

Description of clusters predicted by several clustering algorithms

Algorithms

Category

Cluster

Average Size

DIP

Krogan

MIPS

Gavin

DIP

Krogan

MIPS

Gavin

CMC [16]

Density

1263

907

168

486

4.39

4.56

5.55

COACH [17]

Core

903

547

448

361

3.89

8.97

8.26

MCL [19]

Flow

623

932

425

6.57

3.62

3.93

MCODE [15]

Density

63

85

85

150

19.00

5.88

6.63

ClusterOne [18]

Graph

372

373

256

312

4.90

4.29

6.35

CFinder [14]

Density

609

88

137

6.18

12.73

9.6

DBSCAN [19]

Density

492

96

130

24

6.26

34.43

14.3

12.7

OPTICS

Density

107

278

439

108

5.90

4.17

9

13.5

OPTICS_PSO [20]

Density

76

119

98

84

5.59

8.05

33

8.45

iOPTICS-GSO

Density

99

143

86

101

5.76

5.62

26.5

8.14

From Table 3, we can see that the numbers of clusters obtained by the proposed algorithm on four datasets are smaller than those compared methods. The reason of this result is that the number of interactions in most sub-networks is sparse, so the distance of these nodes calculated by Eq. (7) would be up to 1, and these nodes were regarded as a class, respectively. In the final phase, we filtered the results from each sun-network clustering, and deleted some clustering modules whose density was smaller or had only one node.

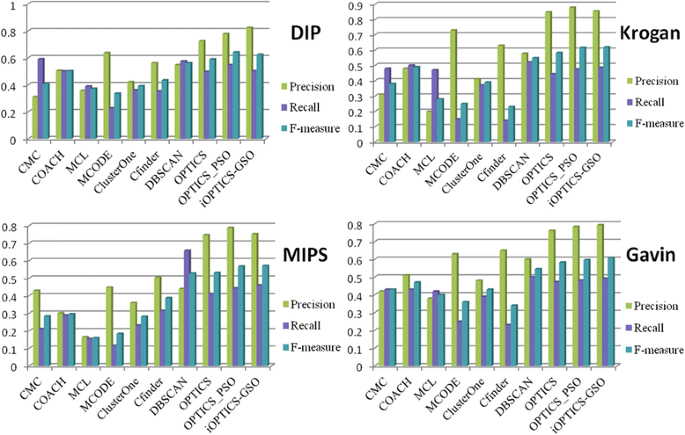

Fig. 5 depicts the precision, recall, f-measure of each algorithm on four datasets. From Fig. 5, we can see that the proposed algorithm obtains the higher precision and f-measure than other competing algorithms. After combining OPTICS with GSO algorithm, the iOPTICS-GSO algorithm can produce the clustering results based on the optimal parameters. Therefore, it obtains a much better performance than the OPTICS algorithm. From the last green and blue column in Fig. 5, we can clearly see that the proposed algorithm obtains the higher precision and f-measure than other competing algorithms.
Fig. 5
Fig. 5

The performance comparisons of various algorithms on four datasets

To evaluate the biological significance and functional enrichment of the complexes identified by our algorithm, we calculated the p-value of the identified protein complexes on Biological Process ontologies based on four datasets by using the tool SGD’s GO: TermFinder (http://www.yeastgenome.org/cgi-bin/GO/goTermFinder.pl). We calculate the p-value of the protein complexes identified by six algorithms, COACH, MCL, MCODE, ClusterOne, OPTICS and OPTICS_PSO, whose size are greater than or equal to 3. The comparison results are showed in Table 4. From Table 4, it is obvious that the proposed algorithm achieves the better performance on DIP data, Krogan data, MIPS data and Gavin data. While the MCL and ClusterOne obtain poor performance on four datasets. There is a few protein complexes identified by iOPTICS-GSO that are insignificant. Especially on the Krogan data, no protein complex is insignificant. That is to say, all protein complexes identified by iOPTICS-GSO on Krogan data are significant. In detail, in DIP data, Krogan data, and Gavin data, the percentages of complexes with p-value < E-15 in predicted complexes by iOPTICS-GSO was the highest. It accounted for 8.70%, 12.22% and 26.25%, respectively. In MIPS data, the percentage of complexes with p-value < E-15 in protein complexes identified by iOPTICS-GSO was the highest. It accounted for 20.00%. As for the comparison with OPTICS_PSO, the percentage of complexes which are significant identified by iOPTICS-GSO was the higher on DIP data and Krogan data. In MIPS data and Gavin data, the percentage of complexes with p-value < E-10 in protein complexes identified by iOPTICS-GSO was the higher. In general, the statistical results in Table 4 indicate that iOPTICS-GSO algorithm was more biologically meaningful than others for identifying significant protein complexes.
Table 4

Comparison of the functional enrichment of protein complexes with other algorithms on four datasets

Dataset

Algorithm

<E-15

[E-15, E-10]

[E-10, E-5]

[E-5, 0.01]

<0.01 significant

≥0.01 insignificant

DIP

COACH

33(6.96%)

44(9.28%)

205(43.25%)

126(26.58%)

408(86.08%)

66(13.92%)

MCL

19(1.80%)

47(4.46%)

183(17.38%)

362(34.38%)

611(58.02%)

442(41.98%)

MCODE

12(7.27%)

17(10.30%)

80(48.48%)

38(23.03%)

147(89.09%)

18(10.91%)

ClusterOne

21(3.66%)

52(9.06%)

177(30.84%)

184(32.06%)

434(75.61%)

140(24.39%)

OPTICS

7(7.87%)

13(14.61%)

40(44.94%)

21(23.6%)

81(91.01%)

8(8.99%)

OPTICS_PSO

5(6.85%)

10(13.70%)

27(36.99%)

23(31.51%)

65(89.04%)

8(10.96%)

iOPTICS-GSO

6(8.70%)

15(21.74%)

29(42.03%)

13(18.84%)

63(91.30%)

6(8.70%)

Krogan

COACH

23(10.41%)

37(16.74%)

91(41.18%)

54(24.43%)

205(92.76%)

16(7.24%)

MCL

16(3.97%)

43(10.67%)

103(25.56%)

119(29.53%)

281(69.73%)

122(30.27%)

MCODE

8(5.00%)

28(17.50%)

68(42.50%)

46(28.75%)

150(93.75%)

10(6.25%)

ClusterOne

13(3.26%)

43(10.78%)

98(24.56%)

120(30.08%)

274(68.67%)

125(31.33%)

OPTICS

13(8.44%)

26(16.88%)

56(36.36%)

31(20.13%)

126(81.82%)

28(18.18%)

OPTICS_PSO

9(9.47%)

19(20.0%)

41(43.16%)

21(22.11%)

90(94.74%)

5(5.26%)

iOPTICS-GSO

11(12.22%)

23(25.56%)

37(41.11%)

19(21.11%)

90(100%)

0(0%)

MIPS

COACH

16(4.04%)

46(11.62%)

145(36.62%)

149(37.63%)

356(89.9%)

40(10.10%)

MCL

5(0.83%)

13(2.15%)

94(15.51%)

220(36.30%)

332(54.79%)

274(45.21%)

MCODE

5(3.70%)

10(7.41%)

70(51.58%)

39(28.89%)

124(91.85%)

11(8.15%)

ClusterOne

7(1.88%)

16(4.30%)

117(31.45%)

126(33.87%)

266(71.51%)

106(28.49%)

OPTICS

16(5.63%)

6(2.11%)

26(9.15%)

74(26.06%)

122(42.96%)

162(57.04%)

OPTICS_PSO

10(11.76%)

3(3.53%)

28(32.94%)

30(35.29%)

71(83.53%)

14(16.47%)

iOPTICS-GSO

7(11.67%)

5(8.33%)

12(20%)

25(41.67%)

49(81.67%)

11(18.33%)

Gavin

COACH

35(14.96%)

39(16.67%)

100(42.72%)

55(23.50%)

229(97.86%)

5(2.14%)

MCL

22(9.69%)

34(14.98%)

88(38.77%)

66(29.07%)

110(92.51%)

17(7.49%)

MCODE

12(7.74%)

20(12.90%)

80(51.61%)

39(25.16%)

151(97.42%)

4(2.58%)

ClusterOne

31(10.62%)

34(11.64%)

118(40.41%)

82(28.08%)

292(90.75%)

27(9.25%)

OPTICS

20(18.52%)

13(12.04%)

53(49.07%)

19(17.59%)

105(97.22%)

3(2.78%)

OPTICS_PSO

15(18.07%)

13(15.66%)

38(45.78%)

16(19.28%)

82(98.80%)

1(1.20%)

iOPTICS-GSO

21(26.25%)

11(13.75%)

31(38.75%)

16(20%)

79(98.75%)

1(1.25%)

The bold data in Tables 4 are the result of our four datasets

We list some identified protein complexes in Gavin data shown in Table 5. These protein complexes are not well matched with the benchmark dataset (the value of OS is low), but both have low p-value of GO terms. The p-value of the identified protein complexes is calculated on Molecular Function. In each row, the proteins in bold have well matched some known protein complex in benchmark complex dataset, and the additional proteins probably share the similar functions with other proteins. For example, 5 proteins do not matches the known protein complex in the first predicted protein complex, while 4 proteins of which (namely YNL248C, YJR063W, YOR340C and YIL021W) share the similar annotations—DNA-directed 5′-3′ RNA polymerase activity—with the true protein complex. We visualize this protein complex shown in Fig. 6. Fig. 6a describes the interaction relationship between 16 proteins, and (b) shows the common GO slim between every two proteins. We can see clearly that the interactions in (a) are much less than those in network (b). This shows that even if there is no interaction between some proteins, but they still have the common GO slim, meaning that they as complex implement some functions with a high probability. Given the incompleteness of protein complex set, the predicted protein complexes have low value of OS but with small p-value are highly likely to be true protein complexes. Therefore, the results provided clues for biologists to verify and find new protein complexes.
Table 5

Some examples of the predicted complexes with small p-value on Gavin data

No.

Predicted protein complex

p-value

Gene Ontology term

OS

1

YKL144C YNR003C YPR110C YPR190C YDL150W YKR025W YNL151C YBR154C YJL011C YNL113W YDR045C YNL248C YJR063W YOR340C YIL021W YML010W

1.22E-35

DNA-directed 5'-3' RNA polymerase activity (GO:0003899)

0.44

2

YJL069C YLR409C YLR222C YLR129W YDR449C YCR057C YGL171W YDR365C YKR060W YDR299W YGR145W YDL213C YNL075W YHR148W YLR186W YLL011W YJR002W YPL217C YGR128C YNL132W YMR093W YCL059C YPR144C YER082C YPR137W YBR247C YPL126W YDR324C YHR196W YOR078W YDL148C YJL109C YMR128W YOL010W YNL308C YHR169W YPR112C YDL166C YLR003C YGR081C YOR056C YGR054W YKL143W YNL207W YPL204W YCL011C YJL033W YKL059C YLR115W YAL043C YLR277C YNL317W YKL018W YJR093C

5.46E-32

snoRNA binding (GO:0030515)

0.11

3

YML114C YCR042C YPL011C YDR167W YMR236W YBR198C YGL112C YMR005W YML015C YDR145W YMR227C YBR081C YLR055C YDR448W YGR252W YDR392W YPL254W

2.37E-26

transcription factor activity (GO:0001075)

0.47

4

YCR042C YML114C YMR005W YML015C YPL011C YMR236W YGR274C YBR198C YGL112C YLR055C YCL010C YDR448W YPL254W

1.67E-21

transcription factor activity (GO:0001075)

0.41

5

YLR129W YLR409C YDR449C YCR057C YPL266W YPR112C YDR299W YGR128C YPL126W YJR002W YDR324C YNL132W YPL217C YBL004W YDL148C YER082C YHR196W YGR090W YCL059C YLR003C YCL011C YCL031C YDL213C

2.91E-17

snoRNA binding (GO:0030515)

0.12

6

YLR418C YGL244W YOL145C YBR279W YOR123C YGL019W YOR039W YMR309C YPL181W

6.89E-14

RNA polymerase II C-terminal domain phosphoserine binding (GO:1990269)

0.36

7

YHL025W YBR289W YPL016W YPR034W YJL176C YFL049W YHR023W YPL082C YNL059C YNL272C YML114C YPL011C YDR176W YBR198C YDR392W YGL066W YOL148C YDR145W YER164W YKR001C YDR073W YML069W YKL088W YMR172W

4.3E-11

DNA-dependent ATPase activity (GO:0008094)

0.17

8

YHR156C YHR165C YER172C YPR082C YDL087C YGR013W YDR283C YJL203W YDR416 YGL128C YLR117C YAL032C YPR178W YBL104C YGL100W YIL061C

2.45E-07

second spliceosomal transesterification activity (GO:0000386)

0.07

The proteins in bold have well matched some known protein complex in benchmark complex dataset

Fig. 6
Fig. 6

Visualization of a protein complex (ID1 in Table 5). YKL144C, YNR003C, YPR110C, YPR190C, YDL150W, YKR025W, YNL151C, YBR154C, YJL011C, YNL113W, YDR045C, YNL248C, YJR063W, YOR340C, YIL021W, YML010W are the names of proteins, which represent different proteins

Conclusions

Protein complexes are not only the basis of normal biological processes, but also play an important role in the pathological process. Therefore, identifying protein complexes play an important role in understanding the cellular organizations and functional mechanisms. In this study, we have put forward the algorithm named iOPTICS-GSO, which is the improved OPTICS algorithm by using GSO to optimize the parameter in OPTICS, and we changed the concept of core node and redefine the similarity which makes more accord with the actual situation of PPI network. As different parameter setting have different results on each sub-network of DPIN, we have used GSO algorithm to optimize these parameters, and finally checked the quality of every cluster and gained the optimal cluster results. The experiment results have shown that our iOPTICS-GSO outperforms competing algorithms in terms of f-measure and p-value. It means the results from iOPTICS-GSO are more biologically meaningful than others for identifying significant proteins complexes. However we also found that the number of clustering modules is relatively small and the recall of clustering results is lower than other algorithms in iOPTICS-GSO results. The reason may be that each protein only can belong to one cluster in iOPTICS-GSO, which causes that other clustering modules are small. Therefore, it would be our focus to discover the effective strategy to improve the result and detect more protein complexes in the future.

Declarations

Acknowledgements

We are grateful to the help of National Natural Science Foundation of China. We appreciate the experimental conditions provided by our college. Especially, we thank our laboratory members for useful discussion and comments.

Funding

This paper is supported by the National Natural Science Foundation of China (61,672,334, 61,502,290, and 61,401,263).

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

About this supplement

This article has been published as part of BMC Medical Genomics Volume 10 Supplement 5, 2017: Selected articles from the IEEE BIBM International Conference on Bioinformatics & Biomedicine (BIBM) 2016: medical genomics. The full contents of the supplement are available online at https://bmcmedgenomics.biomedcentral.com/articles/supplements/volume-10-supplement-5.

Authors’ contributions

X.L. conceive the study, guided the design of the method and the algorithm. H.L. designed and performed the experiment and analyzed the data. X.L. and H.L. drafted the manuscript. A.ZH. and F.X.W revised the manuscript and polished the English expression. All the authors read and approved the manuscript.

Ethics approval and consent to participate

Not applicable

Consent for publication

Not applicable

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
School of Computer Science, Shaanxi Normal University, Xi’an, Shaanxi, China
(2)
Department of Computer Science and Engineering, State University of New York at Buffalo, NY, 14260-2000, USA
(3)
School of Mathematical Sciences, Nankai University, Tianjin, China
(4)
Division of Biomedical Engineering and Department of Mechanical Engineering, University of Saskatchewan, Saskatoon, Canada

References

  1. Gavin AC, Bösche M, Krause R, Grandi P, Marzioch M, Bauer A, Schultz J, Rick M, Michon AM, Cruciat CM, Remor M, Höfert C, Schelder M, Brajenovic M, Ruffner H, Merino A, Klein K, Hudak M, Dickson D, Rudi T, Gnau V, Bauch A, Bastuck S, Huhse B, Leutwein C, Heurtier MA, Copley RR, Edelmann A, Querfurth E, Rybin V, Drewes G, Raida M, Bouwmeester T, Bork P, Seraphin B, Kuster B, Neubauer G, Superti-Furga G. Functional organization of the yeast proteome by systematic analysis of protein complexes. Nature. 2002;415(6868):141–7.View ArticlePubMedGoogle Scholar
  2. Kazemipour A, Goliaei B, Pezeshk H. Protein complex discovery by interaction filtering from protein interaction networks using mutual rank Coexpression and sequence similarity. Biomed Res Int. 2015;2015. Article ID 165186:1–7.Google Scholar
  3. Lage K, Karlberg EO, Størling ZM, Ólason PÍ, Pedersen AG, Rigina O, Hinsby AM, Tümer Z, Pociot F, Tommerup N, Moreau Y, Brunak S. A human phenome-interactome network of protein complexes implicated in genetic disorders. Nat Biotechnol. 2007;25(3):309–16.View ArticlePubMedGoogle Scholar
  4. Yang ZH, Yu FY, Lin HF, Wang J. Integrating PPI datasets with the PPI data from biomedical literature for protein complex detection. BMC Med Genet. 2014;7(2):S3.Google Scholar
  5. Srihari S, Leong HW. Temporal dynamics of protein complexes in PPI networks: a case study using yeast cell cycle dynamics. BMC Bioinform. 2012;13(17):824–34.Google Scholar
  6. Li M, Zheng RQ, Zhang HH, Wang JX, Pan Y. Effective identification of essential proteins based on priori knowledge, network topology and gene expressions. Methods. 2014;67:325–33.View ArticlePubMedGoogle Scholar
  7. Kaufman L, Rousseeuw PJ. Finding Groups in Data: An Introduction to Cluster Analysis. [M] DBLP, 1990.View ArticleGoogle Scholar
  8. Pilevar AH, Sukumar M. A grid-clustering algorithm for high-dimensional very large spatial data bases. Pattern Recogn Lett. 2005;26(7):999–1010.View ArticleGoogle Scholar
  9. Ester M, Kriegel HP, Sander J, Xu XW. A density-based algorithm for discovering clusters in large spatial databases with noise. In: Proceedings of the 2nd international conference on knowledge discovery and data mining. Menlo Park: The AAAI Press; 1996. p. 226–31.Google Scholar
  10. Ankerst M, Breunig M, Kriegel H, Sander J. OPTICS: ordering points to identify the clustering structure. ACM SIGMOD Rec. 1999;28(2):49–60.View ArticleGoogle Scholar
  11. Holland JH. Adaptation in Natural and Artificial Systems: An Introductory Analysis with Applications to Biology, Control, and Artificial Intelligence. Quarterly Review of Biology. 1975;6(2):126–137.Google Scholar
  12. Kennedy J, Eberhart R. Particle swarm optimization. In: Proceeding of the IEEE international conference on neural networks; 1995. p. 1942–8.View ArticleGoogle Scholar
  13. Krishnanand KN, Ghose D. Detection of multiple source locations using a glowworm metaphor with applications to collective robotics. Pasadena: IEEE Swarm Intelligence Sysposium; 2005. p. 84–91.Google Scholar
  14. Adamcsek B, Palla G, Farkas IJ, Derényi I, Vicsek T. CFinder: locating cliques and overlapping modules in biological networks. Bioinformatics. 2006;22(8):1021–3.View ArticlePubMedGoogle Scholar
  15. Bader GD, Hogue CW. An automated method for finding molecular complexes in large protein interaction networks. BMC Bioinform. 2003;4:1–27.View ArticleGoogle Scholar
  16. Liu G, Wong L, Chua H. Complex discovery from weighted PPI networks. Bioinformatics. 2009;25(15):1891–7.View ArticlePubMedGoogle Scholar
  17. Wu M, Li X, Kwoh C, Ng SK. A core-attachment based method to detect protein complexes in PPI networks. BMC Bioinform. 2009;10(1):1–16.View ArticleGoogle Scholar
  18. Nepusz T, Yu H, Paccanaro H. Detecting overlapping protein complexes in protein-protein interaction networks. Nat Methods. 2012;9(5):471–2.View ArticlePubMedPubMed CentralGoogle Scholar
  19. Dongen BSV. Graph clustering by flow simulation. Dissertation for doctoral degree, Center for Math and Computer Science (CWI). Utrecht: University of Utrecht; 2000.Google Scholar
  20. Lei XJ, Li H, Wu Fang-Xiang. Detecting Protein Complexes from DPINs by OPTICS Based on Particle Swarm Optimization. 2016 IEEE International Conference on Bioinformatics andBiomedicine. Shenzhen, China. 2016;1814–21.Google Scholar
  21. Shi BY, Eberhart R. A modified particle swarm optimizer. Proceedings of the IEEE Congress on Evolutionary Computation. Anchorage: IEEE; 1998:303–8.Google Scholar
  22. Yedidia J, Freeman WT, Weiss Y. Understanding belief Propa- gation and its generalizations. Int Joint Conf Artif Intell (IJCAI). 2001;54(1):276–86.Google Scholar
  23. Letovsky S, Kasif S. Predicting protein function from protein-protein interaction data: a probabilistic approach. BMC Bioinform. 2003;19(6):197–204.View ArticleGoogle Scholar
  24. Xenarios I, Salwnski L, Duan XJ, Higney P, Kim SM, Eisenberg D. DIP, the database of interacting proteins: a research tool for studying cellular networks of protein interactions. Nucleic Acids Res. 2002;30(1):303–5.View ArticlePubMedPubMed CentralGoogle Scholar
  25. Krogan NJ, Cagney G, Yu H, Zhong G, Guo X, Ignatchenko A, Li J, Pu S, Datta N, Tikuisis AP. Global landscape of protein complexes in the yeast Saccharomyces Cerevisiae. Nature. 2006;440(7084):637–43.View ArticlePubMedGoogle Scholar
  26. Güldener U, Münsterkötter M, Oesterheld M, Pagel P, Ruepp A, Mewes HW, Stümpflen V. MPact: the MIPS protein interaction resource on yeast. Nucleic Acids Res. 2006;34:D436–41.View ArticlePubMedGoogle Scholar
  27. Gavin AC, Aloy P, Grandi P, Krause R, Boesche M, Marzioch M, Rau C, Jensen LJ, Bastuck S, Dümpelfeld B, Edelmann A, Heurtier MA, Hoffman V, Hoefert C, Klein K, Hudak M, Michon AM, Schelder M, Schirle M, Remor M, Rudi T, Hooper S, Bauer A, Bouwmeester T, Casari G, Drewes G, Neubauer G, Rick JM, Kuster B, Bork P, Russell RB, Furga GS. Proteome survey reveals modularity of the yeast cell machinery. Nature. 2006;440(7084):631–6.View ArticlePubMedGoogle Scholar
  28. Pu S, Wong J, Turner B, Cho E, Wodak SJ. Up-to-date catalogues of yeast protein complexes. Nucleic Acids Res. 2009;37(3):825–31.View ArticlePubMedGoogle Scholar
  29. Lei XJ, Wang F, Wu FX, Zhang AD, Pedrycz W. Protein complex identification through Markov clustering with firefly algorithm on dynamic protein-protein interaction networks. Inf Sci. 2016;329:303–16.View ArticleGoogle Scholar
  30. Tu BP, Kudlicki A, Rowicka M, McKnight SL. Logic of the yeast metabolic cycle: temporal compart mentalization of cellular processes. Science. 2005;310:1152–8.View ArticlePubMedGoogle Scholar
  31. Zhang AD. Protein interaction networks: computational analysis. New York: Cambridge University Press; 2009.View ArticleGoogle Scholar
  32. Brohée S, Helden JV. Evaluation of clustering algorithms for protein–protein interaction network. BMC Bioinform. 2006;7(1):1–19.View ArticleGoogle Scholar
  33. Friedel CC, Krumsiek J, Zimmer R. Bootstrapping the interactome: unsupervised identification of protein complexes in yeast. In. In: Vingron M, Wong L, editors. Proceedings of the 12th annual conference on research in computational molecular biology (RECOMB); 2008. p. 3–16.View ArticleGoogle Scholar
  34. Sadeque A, Serão NV, Southey BR, Delfino KR, Rodriguez-Zas SL. Identification and characterization of alternative exon usage linked glioblastoma multiforme survival. BMC Med Genet. 2012;5(1):59.Google Scholar
  35. Altaf-Ul-Amin M, Shinbo Y, Mihara K, Kurokawa K, Kanaya S. Development and implementation of an algorithm for detection ofprotein complexes in large interaction networks. BMC Bioinformatics. 2006;7:207–19.View ArticlePubMedPubMed CentralGoogle Scholar

Copyright

© The Author(s). 2017

Advertisement
